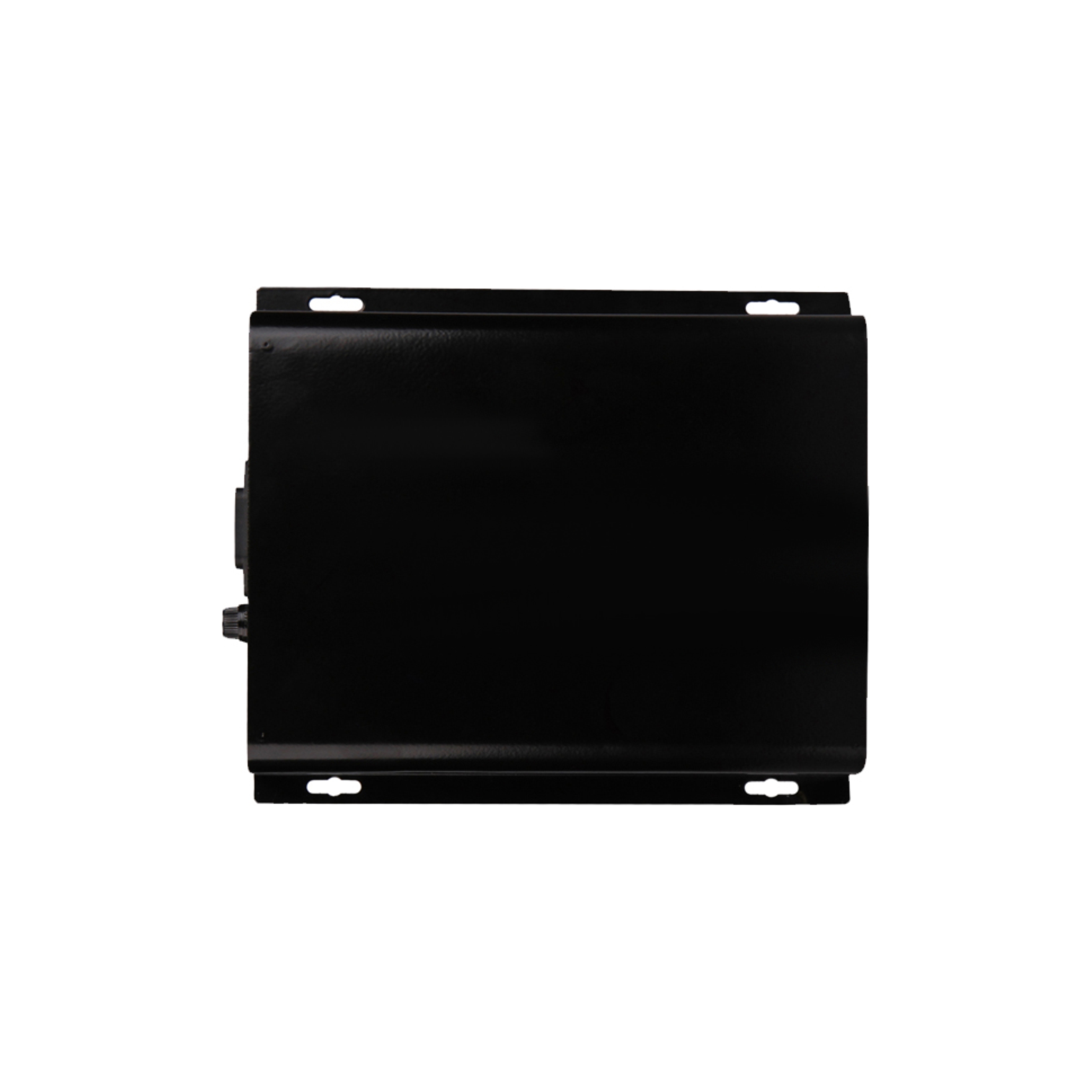

IP network wall mount terminal EV-9004

1. Simple wall-mounted IP network audio coding and decoding terminal, built-in stereo impedance fixed power amplifier;

2. It can be configured to realize fixed point control in the environment where the local terminal needs external audio source or microphone. It is suitable for installation in rooms, classrooms, offices and so on.

Product Overview:

1. Wall-mounted IP network terminal can receive audio files and control signals remotely transmitted by IP network broadcast server through the network;

2, Built-in 2*20W double channel stereo power amplifier, can be directly connected to the external speaker for playback;

3, local has a 10/100M RJ45 network interface;

4. Local terminal with MIC, line input volume adjustment knob, in the local volume can be directly adjusted;

5, local has a dual channel line input interface, a microphone input interface, a line output interface, in the local can be connected to the microphone and line input equipment for local amplification, can adjust the volume of the local microphone and line input, can output to the power amplifier for amplification;

6, Support DHCP automatic access to IP address;

7, Audio adopts the form of hard decoding, integrated IP network hardware decoding module, can receive remote music from the server for real-time playback, at the same time can receive the broadcast call function;

8. It can run independently from the network. If applied in multimedia classroom, it can be used as both broadcasting terminal and multimedia classroom amplifier, and the terminal automatically switches to broadcasting state.

9, audio files support MP3,WMA,OGG and other formats, broadcast the highest bitable rate: 192K/S(44.1,16);

10, with three-level signal priority function, high level can interrupt low level broadca
