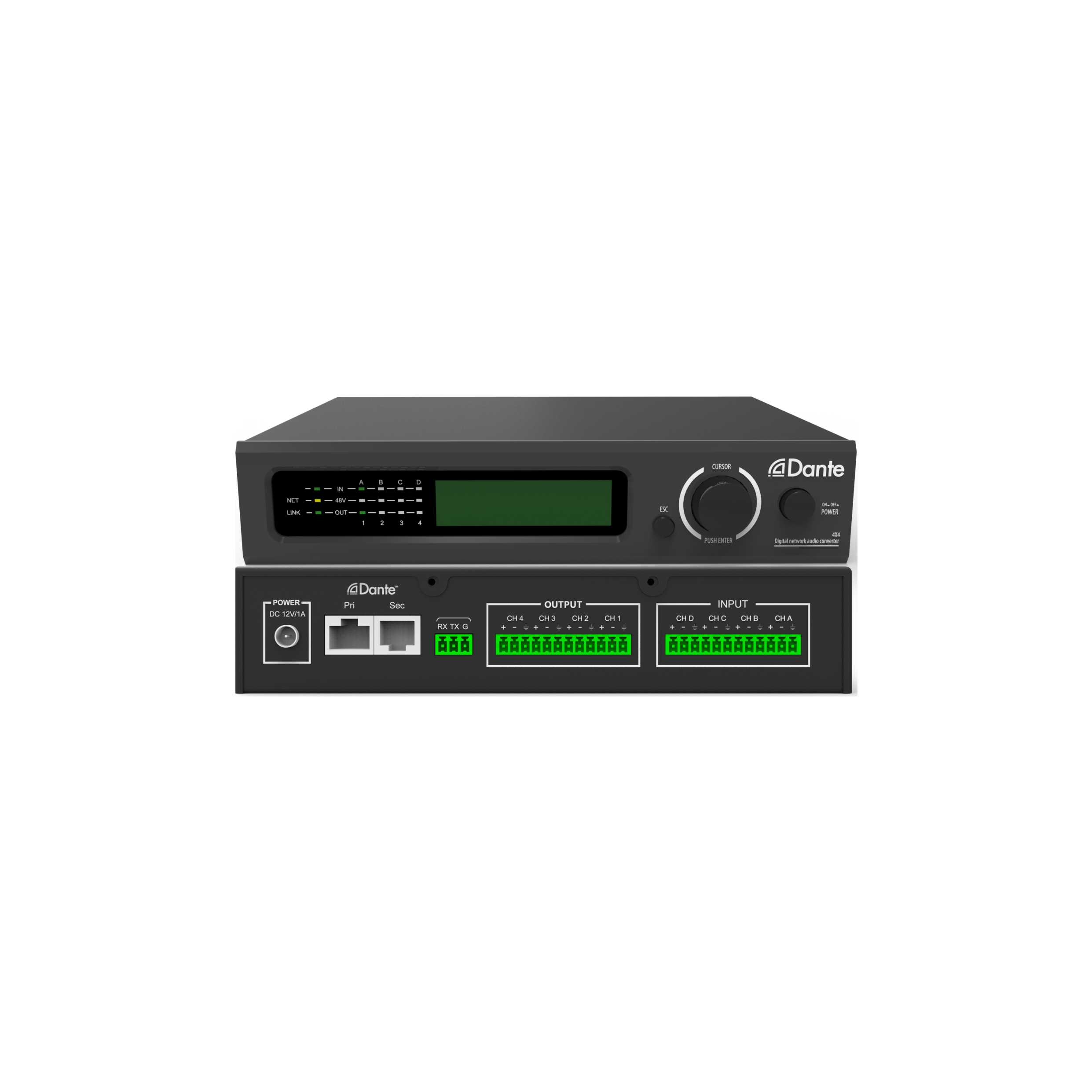

4× 4DANTE digital-to-analog conversion interface box DIF440

Product Description:

★4 channels of DANTE input and output

★ Support MConsole software network management, UDP interface communication

Free switching of 44.1K/48K/ 96K24bit sampling rate

★ Support line input and microphone input level, up to 6 levels of sensitivity adjustment, software selection switch and adjustment

★ Double network ports support hand in hand audio transmission, built-in switch function, higher stability

★ Support RS232 central control

Technical parameters:

Size/weight: 215*145* 45/1.38kg

Operating voltage: DC12V

Operating current: 800mA (peak)

Sampling accuracy: 24Bit

Sampling rate: 48KHz

Frequency response: 20Hz-20kHz@±0.2dB

Dynamic range: 106dB

Distortion: 0.003%

SNR: 106dB

System delay: < 1ms

Channel isolation: <; - 110 db @ 0 is a 1 KHZ

Full input: 12dBu

Full output: 12dBu

Input impedance: 11.5K Ω

Output impedance: 100Ω
